ENGINE CRANKCASE SEALS

Copper sealing ring for drain plug, 22 x 27 mm., 911/912 (65-89) + 959

911.010361

Qty

0.60 € TTC

0.50 € HT

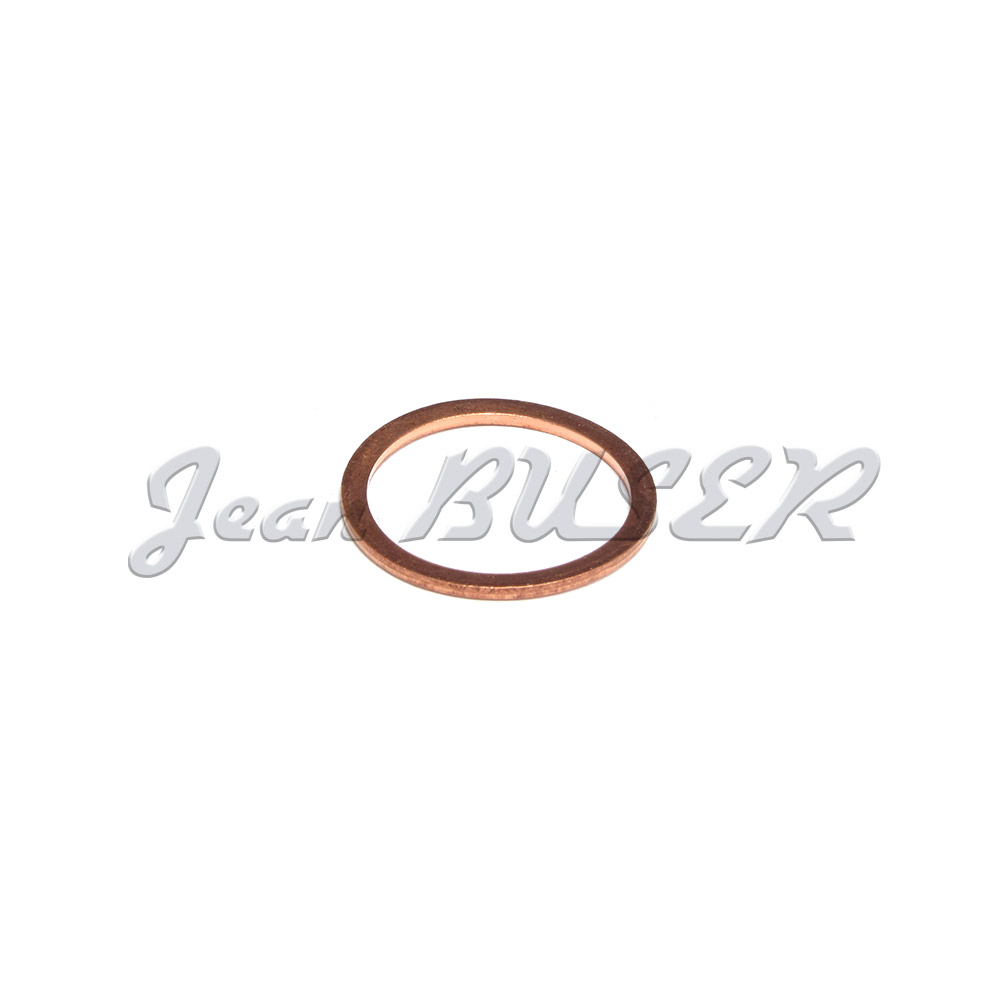

Our copper sealing ring measuring 22 x 27 mm. has several applications in the Porsche parts program.

1. This copper sealing ring is used as the sealing ring for the crankcase drain plug located on the oil strainer sump plate in the following vehicles:

    Porsche 911 2.0 L (1965-1968)

    Porsche 911 S 2.0 L (1967-1969)

    Porsche 911 T 2.0 L (1968-1969)

    Porsche 911 TU 2.0 L (1968)

    Porsche 911 L 2.0 L (1968-1969)

    Porsche 911 E 2.0 L (1969)

    Porsche 911 T / E / S 2.2 L (1970-1971)

    Porsche 911 E / S 2.4 L (1972-1973)

    Porsche 911 T-V / T-E / T-K 2.4 L (1972-1973)

    Porsche 911 2.7 L (1974-1977)

    Porsche 911 S 2.7 L (1974-1977)

    Porsche 911 Carrera 2.7 L (1973-1975)

    Porsche 911 Carrera 3.0 L (1976-1977)

    Porsche 911 Turbo 3.0 L Type 930 (1975-1977)

    Porsche 911 SC 3.0 L (1978-1983)*

    Porsche 911 Turbo 3.3 L (1978-1983)**

* Up to the following engine numbers :
    - M 63D 4069 = 911 SC Engine Type 930.10 150 KW / 204 HP. (1983);
    - M 64D 3716 = 911 SC USA-CAN Engine Type 930.16 132 KW / 179 HP. (1983);
    - M 63D 8154 = 911 SC (Japan) Engine Type 930.17 132 KW / 179 HP. (1983);
** Up to the following engine number :
    - M 67D 0711 = 911 Turbo Engine Type 930.66 221 KW/ 300 HP. (1983);

Quantity required per vehicle in this application: 1.

2. This 22 x 27 mm. copper sealing ring is also used as the sealing ring for the threaded drain plug for the engine’s external oil reservoir in the following vehicles:

    Porsche 911 E / S 2.4 L (1972-1973)

    Porsche 911 T-V / T-E / T-K 2.4 L (1972-1973)

    Porsche 911 2.7 L (1974-1977)

    Porsche 911 S 2.7 L (1974-1977)

    Porsche 911 Carrera 2.7 L (1973-1975)

    Porsche 911 Carrera 3.0 L (1976-1977)

    Porsche 911 SC 3.0 L (1978-1983)

    Porsche 911 Turbo 3.3 L (1978-1989)

    Porsche 911 Carrera 3.2 L (1984-1989)

    Porsche 959 (1987-1988)

Quantity required per vehicle in this application: 1.

3. Additionally, this 22 x 27 mm. copper sealing ring is also factory-installed as the sealing ring for the drain plug and the threaded connector for the exit fuel line in the fuel tank of the following vehicles (the number of parts required per vehicle in this application is given between parentheses):

    Porsche 911 2.0 L (1965-1968) (2)

    Porsche 911 S 2.0 L (1967-1969) (2)

    Porsche 911 T 2.0 L (1968-1969) (2)

    Porsche 911 TU 2.0 L (1968) (2)

    Porsche 911 L 2.0 L (1968-1969) (2)

    Porsche 911 E 2.0 L (1969) (2)

    Porsche 912 1.6 L (1966-1969) (2)

    Porsche 911 T / E / S 2.2 L (1970-1971) (2)

    Porsche 911 T-V 2.4 L (1972-1973) (2)

    Porsche 911 T-K 2.4 L (USA-CAN) (1973)    (1)

    Porsche 911 2.7 L (1974-1975) (2)

    Porsche 911 S 2.7 L (1974-1975) (2)

    Porsche 911 Carrera 2.7 L (1974-1975) (2)

Remarks : Please consult with us for other uses of this copper sealing ring in other Porsche vehicles.

Note : This part is sold individually, but can also be included in one of our engine seal and gasket sets.
